Product Information

Product Details

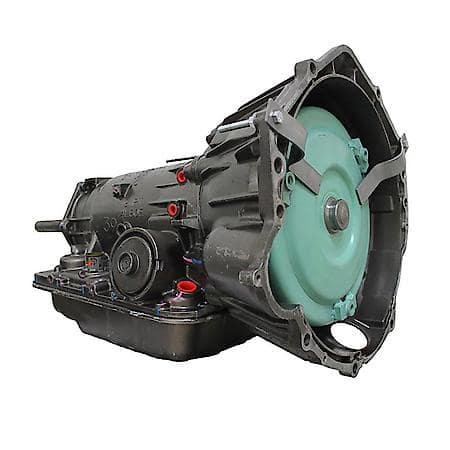

Part No. 1252A-HP
Warranty Details (WARRANTY INFO AVAILABLE ON REQUEST)
Our remanufactured transmissions have improved torque converters included with every transmission to eliminate the possibility of front seal leaks, vibration or premature bushing wear, All torque converters are tested for leaks, lock-up, concentricity & balance. Every fully remanufactured valve body, with complete system correction & recalibration kit, is tested independently & includes updated throttle valve, manual valve, 4-spool switch valve, pressure regulator valve & governor plugs for improved shifting, lubrication & performance. All wear-prone valves are restored to stringent specifications & vacuum tested to confirm proper function. Each remanufactured transmission is hot, cold, load & simulated road testing. All remanufactured transmissions are backed by the industry's best, no-hassle nationwide warranty.

Product Features:
  • Our Remanufactured Transmissions include torque convertors, trans is completely disassembled & checked then reassembled to spec for tolerances, vacuum, seal & balance, all wear parts replaced & sim tested.
  • If we have important installation information it will be included on tags or in the paperwork packaged with your transmission.
  • Transmissions are securely packaged in a recyclable container that will also protect your core on the return trip. Our nationwide warehouse network means speedy delivery.
  • All of our transmissions are Dyno tested to ensure the highest standard of trouble free service and longevity.
Specifications
Connector Type:
Gray with 13 Pins

Converter:
298mm

Covers:
Full Bottom Bell w/2" Round Hole

Drive Type:
2WD 4-1/2 Inch Splines

Factory Code(s):
4L60E

Gear Speeds:
4-Speed

Neutral Safety Switch:
With Bosses

Shift Type:
1-3/4 Inch Manual Shift Shaft Size

Tail Housing:
Without
