Product Information
Product Details

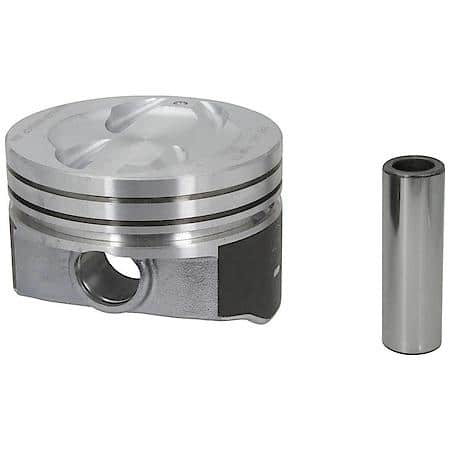

Part No. H423DCP
Warranty Details (1 YR REPLACEMENT IF DEFECTIVE)
Sealed Power parts provide innovative designs, use leading-edge materials and utilize ISO & QS certified manufacturing in order to deliver top quality products that meet the rigorous demands of today's modern engines.
Product Features:
Product Features:
- Hypereutectic
- Made with exclusive FM425 material for excellent strength & scuff resistance - allows tighter bore and improves sealing for less blow-by
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD coating.
- TAC ring groove geometry
- Weight matched to +/- 2 grams.
Specifications
Assembly Lubricant Included:
No
Bore Diameter:
4.000 in
Grade Type:
Premium
Head Illustration:
29
Head Type:
0.098 dish, 4 reliefs; Use w/Lock Ring LR-63; DUROSHIELD~ skirt coated piston
Minimum Clearance:
0.0010
Oil Ring Thickness:
0.1875 in
Part Description:
Engine Piston
Pin Type:
F
Piston Material:
Hypereutectic
Piston Pin Outside Diameter:
0.927 in
Second Compression Ring Thickness:
0.0781 in
Top Compression Ring Thickness:
0.0781 in
