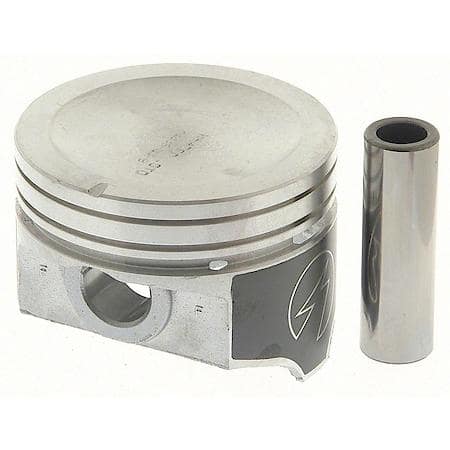

Part No. 1110P 40
Warranty Details (1 YR REPLACEMENT IF DEFECTIVE)
Sealed Power« Vintage components provide coverage for applications over 35 years old, restoring classics with like new performance. Leading edge materials, ISO & QS certified manufacturing ensures performance and longevity for treasured engine rebuilds.
Product Features:
Product Features:
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Controlled casting & machining provides reliability, durability & long life
- Up-tilt ring grooves improve piston to ring sealing
- Provides great blow-by control
Specifications
Assembly Lubricant Included:
No
Bore Diameter:
3.7500 in
Grade Type:
Premium
Head Illustration:
28
Head Type:
Recessed Head .227 deep x 3.050 dia. - 8.4:1 C.R.
Minimum Clearance:
0.001 @ bottom of skirt
Oil Ring Thickness:
0.1875 in
Oversized Amount:
0.040 in
Part Description:
Engine Piston
Piston Head Type:
Recessed
Piston Material:
Cast Aluminum
Piston Pin Outside Diameter:
0.9397 in
Piston Type:
Recessed Head .227 deep x 3.050 dia. - 8.4:1 C.R.
Ring Thickness 1:
5/64 in
Ring Thickness 2:
3/16 in
Second Compression Ring Thickness:
0.0781 in
Set Quantity:
6
Standard Or Oversized:
Oversized
Top Compression Ring Thickness:
0.0781 in
Wrist Pin Diameter:
23.868 mm
