Monroe Load Adjusting Front Suspension Shock Absorber and Coil Spring Assembly
limited lifetime warranty
How Would You Like To Get This Item?
Store Pickup
Same Day Home Delivery
Home Delivery
Product Information
Product Details
Part No. 58270
Warranty Details (Limited Lifetime Warranty)
Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to road and weight conditions to provide extra control when operating conditions get more demanding.
Product Features:
Product Features:
- REDUCES SAG UNDER LOAD - Ideal for occasionally hauling or towing varying loads, heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission, see owner's manual)
- EXCEPTIONAL HANDLING - Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
- CONSISTENT RIDE - OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- LONGER SERVICE LIFE - Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
- IMPROVES PERFORMANCE - Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- 5/8 nitrocarburized rod for long service life.
- Special Seal: 'Self-lubricating' fluid seal designed to retain gas without excessive wear or friction.
- Lower Mount Type: Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/16" Pin Length (Hole Center to Center)
Specifications
Compressed Length:
8.75 in
Dust Shield:
Yes
Dust Shield Included:
Yes
Dust Shield Material:
Metal
Extended Length:
13 in
Hydraulic Lockout:
No
Includes Bump Stop:
No
Internal Rebound Bumper:
Yes
Lower Mount Code:
XP4
Lower Mount Type:
Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/16" Pin Length (Hole Center to Center)
Part Description:
Shock Absorber and Coil Spring Assembly
Parts Pack(s):
P01134
Shock Absorber Body End Measuring Point:
Center of Mounting Hole
Shock Absorber Rod End Measuring Point:
Base of Stem
Travel Length:
4.25 in
Upper Mount Code:
S4
Upper Mount Type:
Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
4.71 out of 5
7 Customer Reviews
86% of respondents would recommend this to a friend
Ratings Distribution
5 Stars
6
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
Pros
3
Comfortable Ride
3
Easy To Install
3
Improves Handling
2
Durable
2
Easy To Use
Cons
3
None
1
Flimsy
1
Incompatible
Best Uses
3
Restoration
2
Large Cars
2
Everyday Driving
2
Replacement
1
Lowered Cars
Car & Truck
2
Casual Driver
1
Truck Enthusiast
1
Work truck
1
Semi Driver
Car/Motorcycle Describe yourself
3
Mechanic
1
Auto Enthusiast
1
Casual Driver
Reviewed by 7 Customers
Rides like a champ!!
Staff Reviewer -

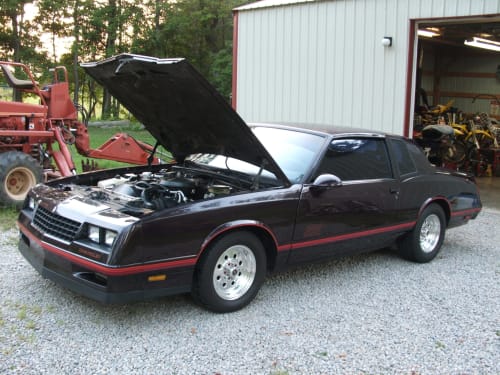

Put these on my 87 Monte Carlo SS front,its been lowered 2".before the tires use to bottom out on dips and hit inner fender well,after installing them no more problems even on a big bump!
Bottom Line Yes, I would recommend to a friend
Worked like magic.
Installed them on my 87 Monte Carlo ss front,what a difference they made.easier than springs,and cheaper. really made it ride and drive like new.
Bottom Line Yes, I would recommend to a friend
Awesome Ride Inprovement
Once I got passed the Brain Deads at the local store
Installed these shocks best thing I could of done for a 1982 GMC Caballero
Worth the money and time to get these shocks.
So just get them it's worth it
Bottom Line Yes, I would recommend to a friend
Gave my 1992 s10 4x2 a new stance
Verified Buyer -
Put these on a 1992 s10 4x2 a few days ago. My s10 is a daily driver and a pasture beater and boy were the front shocks toast. I put these bad boys on and they raised the front stance several inches, back to the way she was when she came off the assembly line, maybe even a little taller. I paired these with the Monro Max-Air adjustable shocks for the rear. Couldn't be happier with both of them.
Bottom Line Yes, I would recommend to a friend
Restores ride height.
Staff Reviewer -
Excellent product to restore original front height to older pick-up trucks and autos. Gives stock springs a lift boost. Made in USA!
Bottom Line Yes, I would recommend to a friend
