Product Information
Product Details

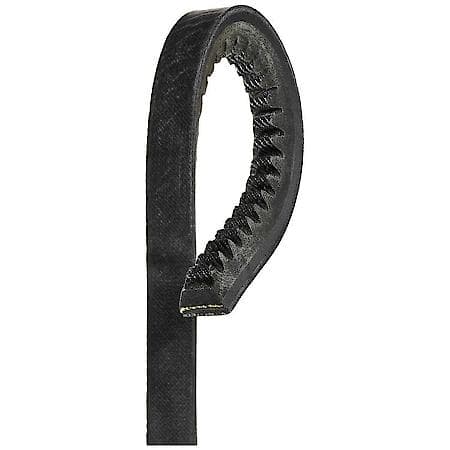

Part No. 5VX1120
Warranty Details (1 YR REPLACEMENT IF DEFECTIVE)
Product Features:
- Promotes smoother, quieter operation, with less slippage and belt wear for improved belt life reducing expensive maintenance time
- More compact design compared to classical section V-belts and optimally designed for high horsepower, space-constrained applications with small pulley diameter drives
- The patented Flex-Weave cover is made of a proprietary fabric that protects the belt core from oil, contaminants, and heat to extend its life.
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Precision-ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves for even wear and extended belt life
- Molded teeth reduce and better distribute thermal and bending fatigues.
- Patented ethylene elastomer compound construction protects the belt against heat, ozone and sunlight
- Meets ARPM/RMA IP-3-2 oil and heat resistance standards and ARPM/RMA IP-3-3 static conductivity requirements
- Temperature Range: -70 Deg. F to +250 Deg. F (-57 Deg. C to +121 Deg. C)
- NOTE: Available in 3VX, 5VX, and 8VX cross-sections as well as Super HC Molded Notch PowerBand joined V-belts
Specifications
Belt Material:
Ethylene Elastomer (EE)
Construction:
Notched
Cord Material:
Polyester
Cross Section Designation:
5VX
Notched:
Yes
Outside Circumference:
112 in
Strand Quantity:
1
Top Width:
.62 in
Type:
Narrow Section Molded Notch V-Belt
