Product Information
Product Details

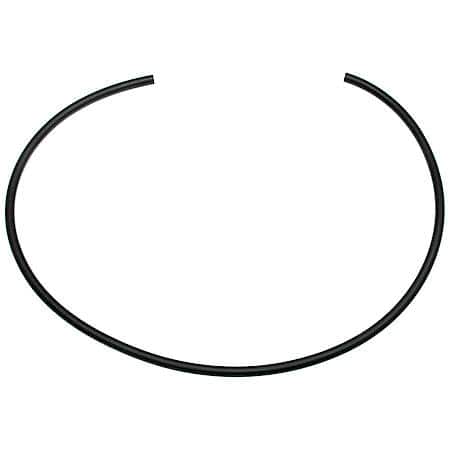

Part No. 85943
Warranty Details (1 YR REPLACEMENT IF DEFECTIVE)
Recommended for low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air. Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to +125 Deg F biodiesel fuel transfer applications.
Product Features:
Product Features:
- For use with GLX Fittings [G44 Series], MegaCrimp Fittings [G25 Series], and Power Crimp Fittings (-3 only).
- Meets SAE 30R2 performance requirements for both Type 1 and Type 2 for fuel and constant contact B20 up to 125 degrees. Biodiesel Transfer Applications
- Meets MSHA 2G flame resistance designation
- Temperature range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); Air: +160 Deg. F (+71 Deg. C)
- GLX Couplings (-12 & -16)
- MegaCrimp Couplings
- Power Crimp Couplings (-3)
Specifications
Bend Radius:
4 in
Burst Pressure:
1000 lb/in²
Coupling Recommendation:
GLP, MegaCrimp
Cover Color:
Black
Cover Material:
Synthetic Rubber - Modified Nitrile - Type C2
Cover Type:
Type C2 - Flame, Oil & Abrasion Resistant
Dash Size:
6
Hose Material:
Nitrile - Type C
Inside Diameter:
.375 in
Length:
25 ft
Maximum Working Pressure:
250 lb/in²
Outside Diameter:
.66 in
Reinforcement Material:
One Fiber Braid
SAE Standard:
30R2
Vacuum Rating:
28 inHg
