Product Information
Product Details
Part No. 70487
Warranty Details (30 DAY REPLACEMENT IF DEFECTIVE)

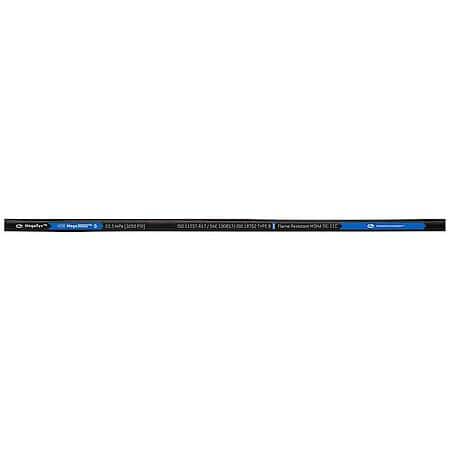

Recommended for high-pressure hydraulic oil lines. Exceeds SAE 100R17 and ISO11237 R17 working pressure, minimum bend radius requirements and performance requirements of EN 857 1SC. M3K hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose.
Product Features:
Product Features:
- For use with GlobalSpiral Couplers [G20 Series], MegaCrimp Couplers [G25 Series], Power Crimp Couplers (-3 only), and Stainless Steel Braided Couplers [G17 Series].
- Provides up to 1/3 bend radius of the SAE specification and greater flexibility for easy routing
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose last up to 25 times longer than a standard hose
- The MegaTuff hose lasts up to 300 times longer than a standard hose in abrasion tests, hose-to-hose, and hose-to-metal according to ISO 6945 and offers superior ozone and weather resistance.
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Rated at 3250 PSI working pressure
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Specifications
Bend Radius:
2.8 in
Burst Pressure:
13000 lb/in²
Coupling Recommendation:
GlobalSpiral, MegaCrimp, Stainless Steel B
Cover Color:
Black
Cover Material:
Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline
Cover Type:
Type C2 - Flame, Oil, Abrasion & Weather Resistant
Dash Size:
8
EN Standard:
857 1SC
Hose Inside Diameter:
0.5 in
Hose Material:
Nitrile - Type C
Hose Outside Diameter:
0.8 in
Hose Pressure Description:
High Pressure
Industrial Description:
8M3KXREEL
Inside Diameter:
.5 in
Length:
220 ft
Maximum Working Pressure:
3250
Minimum Bend Radius:
2.8 in
Minimum Burst Pressure:
13000
Outside Diameter:
.8 in
Product Type:
Global M3K Mega3000 Hose - SAE 100R17
Reinforcement:
One Braid, High-Tensile Steel Wire
Reinforcement Material:
One Braid, High-Tensile Steel Wire
SAE Standard:
100R17
Temperature Range:
-40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Tube Description:
Black, Oil-Resistant, Synthetic Rubber (Nitrile - Type C)
Type:
Hydraulic Hose
