Product Information
Product Details
Part No. 528-216
Warranty Details (LIMITED LIFETIME REPLACEMENT)

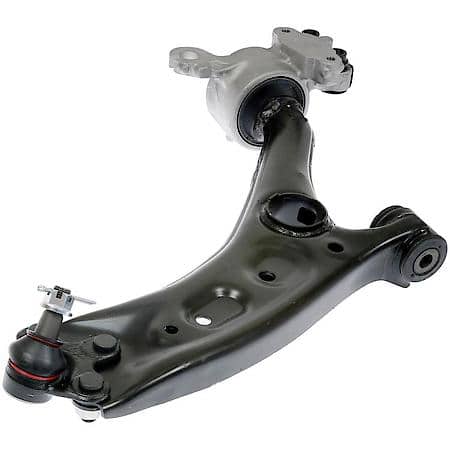

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
Product Features:
Product Features:
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Specifications
Adjustable:
No
Attachments Included:
Yes
Ball Joint Included:
Yes
Ball Joint Installed:
Yes
Ball Joint Mounting Type:
Bolt In
Ball Joint Stud Length:
21.5 mm
Ball Joint Stud Type:
Threaded
Ball Joint Thread Diameter:
14 mm
Bearing Material:
Polymer
Boot Color:
Black
Boot Material:
Polychloroprene
Bushing Color:
Black
Bushing Included:
Yes
Bushing Inside Diameter:
14.2 mm
Bushing Length:
59.8 mm
Bushing Material:
Rubber
Bushings Included:
Yes
Castle Nut Included:
Yes
Cone Outside Diameter:
15.3 mm
Control Arm Color:
Black
Control Arm Construction:
Boxed
Control Arm Material:
Steel
Control Arm Maximum Length:
372.6 mm
Control Arm Maximum Width:
381.8 mm
Control Arm Type:
Boxed
Cotter Pin Included:
Yes
Distance Between Bushings:
315 mm
Dust Boot Included:
Yes
Dust Boot Material:
Polychloroprene
End 1 Thread Diameter:
14 mm
End 1 Thread Pitch:
1.5
End 1 Thread Size:
14 mm mm
Finish:
Coated
Grade Type:
Standard Replacement
Grease Fitting Included:
No
Greaseable:
No
Length:
372.6 mm
Length Center Bore To Center Bore:
315 mm
Locking Nut Included:
Yes
Mounting Hardware Included:
Yes
Mounting Hole Quantity:
4
Pre-Greased:
Yes
Reinforced:
Yes
Set:
No
Steering Type:
Power
Thread Diameter:
14 mm
Thread Direction:
Clockwise (Right)
Thread Pitch:
1.5
Thread Size:
14 mm mm
