Product Information
Product Details
Part No. 521-678
Warranty Details (LIMITED LIFETIME REPLACEMENT)

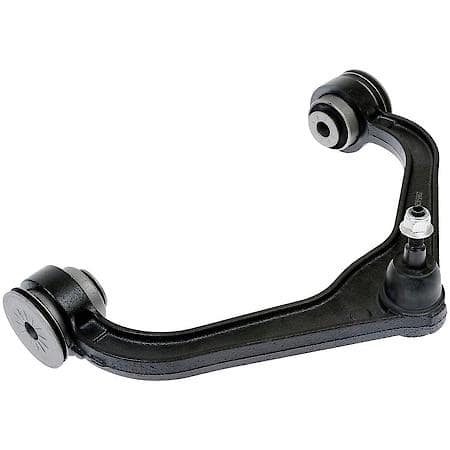

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
Product Features:
Product Features:
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Specifications
Adjustable:
No
Attachments Included:
Yes
Ball Joint Included:
Yes
Ball Joint Installed:
Yes
Ball Joint Mounting Type:
Machined
Ball Joint Stud Length:
26 mm
Ball Joint Stud Type:
Threaded
Ball Joint Thread Diameter:
12 mm
Bearing Material:
Polymer
Boot Color:
Black
Bushing Color:
Black
Bushing Material:
Rubber
Bushings Included:
Yes
Castle Nut Included:
Yes
Cone Outside Diameter:
15.6 mm
Control Arm Color:
Black
Control Arm Construction:
Casting/Forged
Control Arm Material:
Aluminum
Control Arm Maximum Length:
215 mm
Control Arm Maximum Width:
421 mm
Control Arm Type:
Cast
Cotter Pin Included:
No
Distance Between Bushings:
356 mm
Dust Boot Included:
Yes
End 1 Thread Diameter:
12
End 1 Thread Pitch:
1.75 mm
Finish:
Painted
Grade Type:
Standard Replacement
Grease Fitting Included:
Yes
Greaseable:
Yes
Length:
215 mm
Length Center Bore To Center Bore:
356 mm
Locking Nut Included:
Yes
Mounting Hardware Included:
Yes
Mounting Hole Quantity:
2
Pre-Greased:
Yes
Reinforced:
No
Set:
No
Steering Type:
Power
Thread Diameter:
12 mm
Thread Direction:
Clockwise (Right)
Thread Pitch:
1.75 mm mm
