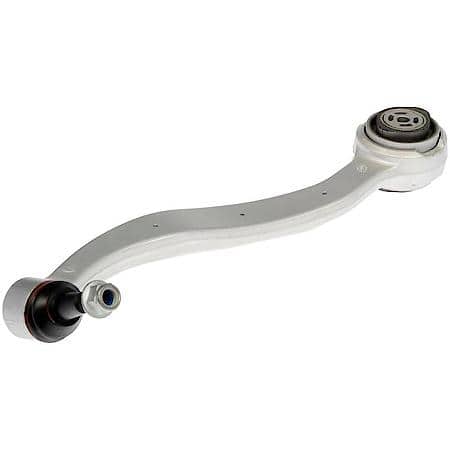

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
Product Features:
Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Specifications
Adjustable:
No
Attachments Included:
Yes
Ball Joint Included:
Yes
Ball Joint Installed:
Yes
Ball Joint Mounting Type:
Machined
Ball Joint Stud Length:
22.7 mm
Ball Joint Stud Type:
Threaded
Ball Joint Thread Diameter:
14 mm
Bearing Material:
Polymer
Boot Color:
Black
Boot Material:
Polychloroprene
Bushing Color:
Black
Bushing Inside Diameter:
12.3 mm
Bushing Length:
69.5 mm
Bushing Material:
Steel
Bushings Included:
Yes
Castle Nut Included:
No
Cone Outside Diameter:
16.2 mm
Control Arm Color:
Gray
Control Arm Construction:
Casting/Forged
Control Arm Material:
Aluminum
Control Arm Maximum Length:
424.5 mm
Control Arm Maximum Width:
69.5 mm
Control Arm Type:
Casting/Forged
Cotter Pin Included:
No
Dust Boot Included:
Yes
Dust Boot Material:
Polychloroprene
End 1 Thread Size:
14 mm mm
Finish:
Powder Coated
Grade Type:
Standard Replacement
Grease Fitting Included:
No
Greaseable:
No
Length:
424.5 mm
Locking Nut Included:
Yes
Mounting Hardware Included:
Yes
Mounting Hole Diameter:
12.3 mm
Pre-Greased:
Yes
Thread Direction:
Clockwise (Right)
Thread Size:
14 mm mm
