Carquest Premium Radiator

(7 reviews)
Part # 433366
limited lifetime warranty
Loading...
How Would You Like To Get This Item?

Store Pickup

Loading...Loading...Loading...

Same Day Home Delivery

Loading...Loading...Loading...

Home Delivery

Loading...Loading...Loading...
Loading...
Loading...
Loading...Loading...Loading...Loading...Loading...

Product Information

Product Details
Part No. 433366
Warranty Details (Limited Lifetime Warranty)
Reach Radiators offer one of the largest product ranges in the aftermarket, covering more than 95% of the popular automotive and light truck applications. Reach Radiators meet or exceed original equipment specifications, ensuring that products fit and perform just as well or better than the original parts, providing you peace of mind.

Product Features:
  • Our B-type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Specifications
Construction:
Plastic Tank Aluminum

Core Height:
717.6

Core Material:
Aluminum

Core Row Quantity:
2

Core Thickness:
44.5

Core Width:
428.6

Down Flow Or Cross Flow Type:
Cross Flow

Engine Oil Cooler Included:
No

Inlet Diameter:
1.562 in

Inlet Header Length:
18.625 in

Inlet Header Width:
3.5 in

Inlet Location:
Top Left

Outlet Diameter:
1.75 in

Outlet Header Length:
476.3 mm

Outlet Header Width:
88.9 mm

Outlet Location:
Bottom Right

Radiator Cap Included:
No

Tank Material:
Aluminum

Transmission Oil Cooler Diameter:
12.5 in

Transmission Oil Cooler Distance between Fittings:
305 mm

Transmission Oil Cooler Fitting Type:
Threaded

Transmission Oil Cooler Included:
Yes

Transmission Oil Cooler Type:
Concentric
Loading...
Loading...Loading...Loading...Loading...Loading...
2.86 out of 5
7 Customer Reviews
60% of respondents would recommend this to a friend
Ratings Distribution
5 Stars
1
4 Stars
1
3 Stars
3
2 Stars
0
1 Star
2
Decent Radiator for PriceDecent Radiator for Price
Pros
2
Lightweight
1
Durable
1
Easy To Install
1
Bolted right in
1
Easy To Use
Cons
1
Difficult To Install
1
none
1
Paint was thin
1
Not Brass And Copper
Best Uses
1
Replacement
1
Restoration
1
Trucks
Car & Truck
1
Auto Enthusiast
Describe Yourself
4
Truck Enthusiast
3
Auto Enthusiast
2
Casual Driver
2
Mechanic
Reviewed by 7 Customers
Decent Radiator for Price

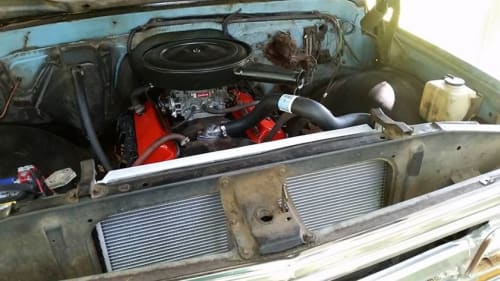

I bought this product for my 1969 GMC 2500 truck with small block 350. This truck had the original 3 Core radiator which was leaking and freighted with sludge. The new radiator is less than half the weight. If your truck has the 3 core radiator mounts you will need to trim the rubber to get this to fit, or order the 4 core radiator mounts from big block trucks, or trucks with tow package. To my knowledge almost no new repop radiator on the market fits the 3 core mounts without some modification. I plan to order the 4 core mounts for the top and replace the current trimmed setup, but it looks factory as is when in place. The only thing I do not care for (which is common on most new radiators) is the lack of metal insert in the fill neck, and the plastic drain plug. I did not experience any leaks on initial test. Although I have not road tested the truck this is a 3 core radiator and being aluminum / copper instead of steel / copper should offer some slightly better performance than 40yr old technology. Bottom line worked, and price was cheap, but as with any old vehicle some modification is neccissary.
not good...
Verified Buyer -
did not fit the way an original would, had to modify the top and bottom mounts, bummer...
Bottom Line No, I would not recommend to a friend
Exactly as stated
Staff Reviewer -
Appeared to be good quality. Thicker and heavier duty than the original but still bolted right in. I did repaint it as the finish was very thin.
Bottom Line Yes, I would recommend to a friend
works gre
Staff Reviewer -
This was used as a replacement for the original radiator in my 68 GMC truck
Bottom Line Yes, I would recommend to a friend
NOT all metal!
In the questions section this radiator was described as made of brass and copper. It was made of aluminum and plastic!
Bottom Line No, I would not recommend to a friend
Displaying Reviews 1 - 5Back to Top
