Sealed Power® parts provide innovative designs, use leading edge materials and utilize ISO & QS certified manufacturing in order to deliver top quality products that meet the rigorous demands of today's modern engines.
Product Features:

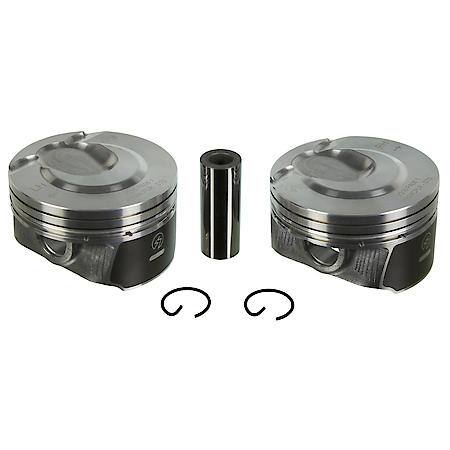

Hypereutectic piston cast with S2N proprietary alloy
Duroshield« graphite coated piston helps prevent scuffing of skirt and cylinder wall
Up-tilt ring grooves to improve piston-to-ring side sealing, providing exceptional blow-by control, improved efficiency and better economy
Ultra precise pin bores allow total flexibility with precision-machined lube slots ensuring controlled lubrication tolerances with either pin installation methods
Specifications
Assembly Lubricant Included:
No
Bore Diameter:
92.50 mm
Grade Type:
Premium
Oversized Amount:
0.25 mm
Part Description:
Engine Piston
Piston Material:
Hypereutectic
Piston Pin Outside Diameter:
23.00 mm
Second Compression Ring Thickness:
1.20 mm
Top Compression Ring Thickness:
1.50 mm
