Product Information
Product Details
Part No. DW-K6335
Warranty Details (Limited Lifetime Warranty)
Driveworks Brand pitman arms are made to meet OE specifications and help to restore correct steering and prevent tire wear. Driveworks Brand chassis parts promote improved steering response and durability.
Product Features:
Product Features:
- Meets or exceeds OE performance specifications
- Precision engineered for improved ride and superior performance
- Performance tested to ensure durability
Specifications
Adjustable:
No
Castle Nut Included:
Yes
Cotter Pin Included:
Yes
Dust Boot Included:
Yes
Dust Boot Material:
CR
Grease Fitting Included:
Yes
Greaseable:
Yes
Height:
69 mm
Length:
135 mm
Material:
Housing: 45# Steel, Stud: 40Cr Steel
Maximum Outside Diameter:
60 mm
Mount Plate Included:
Yes
Mounting Hardware Included:
No
Mounting Hole Quantity:
1
Mounting Type:
Press-in
Stud Taper Per Foot:
1.5 in
Stud Tapered End 1 Diameter:
15.05 mm
Stud Tapered End 2 Diameter:
17.3 mm
Stud Thread Diameter:
14.2875 mm
Stud Thread Length:
20 mm
Stud Thread Pitch:
1.41 mm
Stud Threads Per Inch:
18
Stud Type:
With thread
Tapered Stud:
Yes
Type:
Bent
3.72 out of 5
46 Customer Reviews
50% of respondents would recommend this to a friend
Ratings Distribution
5 Stars
23
4 Stars
8
3 Stars
3
2 Stars
3
1 Star
9
Pros
5
Durable
5
Easy To Use
1
High-Performance
1
Versatile
1
Good Price / Value
Cons
1
Difficult To Use
1
Flimsy
1
Wrong hole for steering box
1
Not durable
1
Poor Assembly
Best Uses
10
Trucks
1
Large Cars
1
Small Cars
Car & Truck
4
Truck Enthusiast
3
Mechanic
2
Auto Enthusiast
1
Casual Driver
Car/Motorcycle Describe yourself
8
Mechanic
4
Auto Enthusiast
4
Truck Enthusiast
1
Casual Driver
1
Backyard Mechanic
Most Liked Positive Review
Works
Works great, is much more affordable than some other options, and helped get rid of slop in the steering. Comes with grease fitting, bolt, and cotter pin. Just beware you will need a 33mm socket (34mm works fine also and can be rented from advance auto) and the larger pitman puller to remove the old one (with a 96 gmc truck anyway).
Most Liked Negative Review
poor product

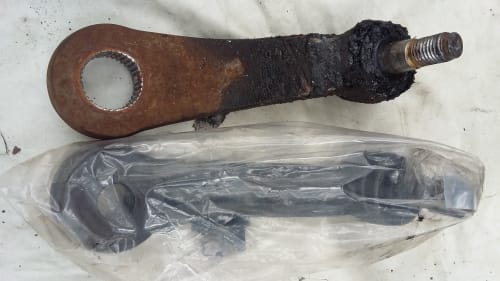

Unfortunately this product is more proof of cheap isnt always right. first is the ball socket, narrower than O.E. 2nd the taper was incorrect not allowing it to slide on to the pitman shaft.
because of the poor quality, had to buy from a competitor, due to vehicle being apart and store over 5 miles away.
Reviewed by 46 Customers
Do not buy this cheap part!!
This part initially fixed steering slop but the truck had the play back in a month. Inspection revealed this pitman arm was totally causing the play. It was wore out already!! Going to get the Moog to replace it.
Bottom Line No, I would not recommend to a friend
do not buy this part
i put this part in my truck and in 1 week the part went bad and created a very dangerous condition
Bottom Line No, I would not recommend to a friend
Saved a buck but am paying for it now.
Staff Reviewer -
Tried to save a buck but I'm paying for it now. Pitman arm didn't even last 5000 miles. Now I'm working on the road and have to pay someone to replace it. DO NOT BUY THIS PRODUCT. It is junk. Stick with the higher priced brand names like MOOG or Raybestos when getting stearing components. They last as long as factory and sometimes longer.
Bottom Line No, I would not recommend to a friend
Low cost fix
Staff Reviewer -
This took the play out of the steering on my 97 K1500 Suburban. It did not tighten onto the splines as far as the original did, but works fine. Low cost fix.
Bottom Line Yes, I would recommend to a friend
Exact fit, good price
Staff Reviewer -
Fit great, install was pretty easy. Don't forget to get a puller to get the old one off. This and the pitman arm with the pitman arm mount fixed the slop in my '97 chevy truck steering.
Bottom Line Yes, I would recommend to a friend
Displaying Reviews 1 - 5Back to Top
